| উৎপত্তি স্থল: | ZHEJIANG |
| পরিচিতিমুলক নাম: | Helm Tower |
| সাক্ষ্যদান: | ISO 9001:2008 |
| মডেল নম্বার: | MCR05 MCRE05 |
| ন্যূনতম চাহিদার পরিমাণ: | 1 PCS |
|---|---|
| মূল্য: | 699-1299 USD |
| প্যাকেজিং বিবরণ: | Wooden Case |
| ডেলিভারি সময়: | 8-16 working days |
| পরিশোধের শর্ত: | L/C, T/T, D/P, Western Union, MoneyGram |
| যোগানের ক্ষমতা: | 750 units per month |
| Type: | Low Speed High Torque Hydraulic Motor | Color: | Customized color |
|---|---|---|---|
| Speed: | 0-220 r/min | Torque: | 1419-2802 N.m |
| Rated pressure: | 25 MPa | Warranty: | 1 Year |
| লক্ষণীয় করা: | Mcr05 Construction Machinery Parts,Bobcat Rexroth Hydraulic Motor,Mcr3 Hydraulic Motor |
||

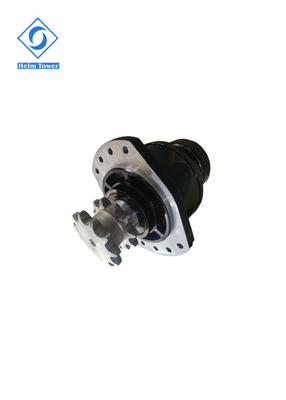

Hydraulic bobcat Rexroth mcr3 mcr05 construction machinery parts
Rexroth MCR05 series motor also be called Incurve Multicam Radial-piston
Low Speed High Torque Hydraulic Motor, Which has many features as followed:
1) Modular design
2) High efficiency
3) High pressure and smooth running even at very low speeds
4) Permissible Ridial and Axial load
5) Motor with multi-disc brake (holding brake)
We can provide you
Rexroth MCR3, MCR03, MCR5, MCR05, MCR10 etc.
Poclain MS02, MSE02, MS05, MSE05, MS08, MSE08, MS11, MSE11, MS18, MSE18, MS25, MS35, MS50, MS83, MS125 SERIES motor & related spare parts, repair parts, motor seal kits etc...
The perfomance of our motor as below:
Motor with brake & motor without brake.
Duel speed motor & single speed motor.
Variable displacement motor.
Large torque with low speed.
Otherwise, all of our MS series motors can replace original poclain motor completely.
Moreover, we can warranty the motor quality for 1 year. This means during guantee time, all repairment are free of charge.
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine,
MCR05 Connection Dimension
Workshop View:
Quality Control:
