| উৎপত্তি স্থল: | CHINA |
| পরিচিতিমুলক নাম: | Helm Tower |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | MS02 |
| ন্যূনতম চাহিদার পরিমাণ: | 1 |
|---|---|
| প্যাকেজিং বিবরণ: | wooden case |
| ডেলিভারি সময়: | 15 days |
| পরিশোধের শর্ত: | L/C, T/T |
| যোগানের ক্ষমতা: | 500 sets per month |
| Certificate: | ISO9001:2008 | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Piston Motor | Application: | Road sweeper |
| Rated Pressure: | 25 Mpa | After warranty: | Technical support |
| লক্ষণীয় করা: | Ms02 Hydraulic Drive Wheel Motor,Poclain Hydraulic Drive Wheel Motor,Road Sweeper Hydraulic Motor |
||

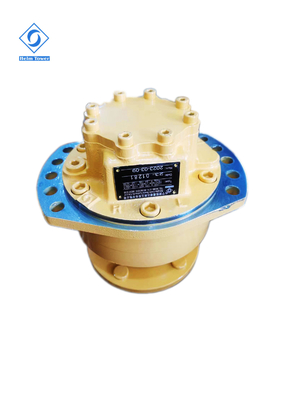

Yellow Hydraulic drive wheel motor for poclain mini ms02 for Road Sweeper
Modular design, High efficiency, High pressure and smooth running even at very low speed
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control
Application: Road Sweeper etc.
HMS MOTOR APPLIATION
|
Type Displacement |
MS02-8 | MS02-9 | MS02-0 | MS02-1 | MS02-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 172 | 86 | 213 | 106 | 235 | 118 | 255 | 128 | ||
| Max power(kw) | 16 | 10 | 16 | 10 | 16 | 10 | 16 | 10 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
273 | 136 | 340 | 170 | 351 | 175 | 405 | 202 | ||
| Rated torque(N.m) | 643 | 796 | 878 | 953 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | ||||||
| Rated speed(r/min) | 140 | 140 | 140 | 120 | ||||||
| Speed range(r/min) | 0-310 | 0-310 | 0-310 |
0-260 |
||||||
Spare parts
Workshop View
Quality Control
