| উৎপত্তি স্থল: | NINGBO |
| পরিচিতিমুলক নাম: | Helm Tower |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | MCR05 MCRE05 |
| ন্যূনতম চাহিদার পরিমাণ: | Negotiation |
|---|---|
| মূল্য: | Negotiable |
| প্যাকেজিং বিবরণ: | Export case |
| ডেলিভারি সময়: | 7 working days |
| পরিশোধের শর্ত: | T/T, L/C |
| যোগানের ক্ষমতা: | 2000 pcs per month |
| Performance: | 100% Replacement of Original Motor | Color: | Customized |
|---|---|---|---|
| Pressure: | 31.5 Mpa | Material: | Casting Iron |
| Warranty: | 1 Year | Condition: | New |
| লক্ষণীয় করা: | Hydraulic Helm Motor,MCRE05 Hydraulic Motor,Rexroth MCR05 Helm Motor |
||

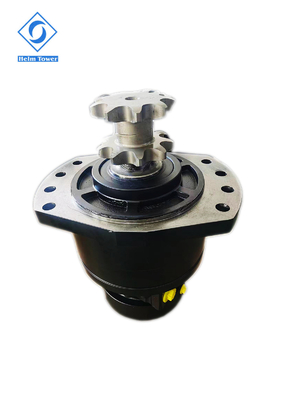

Rexroth MCR05 MCRE05 China Hydraulic Motor/helm motor/hydraulic part
Product Description
1. Product Features:
MCR05 Hydraulic Wheel Motor:
1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.
2. Applications:
Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Engineering Machinery: Skid Steer Loader, Break Machine.
Technical specification
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
