| উৎপত্তি স্থল: | China |
| পরিচিতিমুলক নাম: | Helm Tower Hydraulic |
| সাক্ষ্যদান: | ISO9001:2008 |
| মডেল নম্বার: | MS05 MSE05 |
| ন্যূনতম চাহিদার পরিমাণ: | 1 |
|---|---|
| মূল্য: | Negotiable |
| প্যাকেজিং বিবরণ: | Wooden case |
| ডেলিভারি সময়: | 15 days |
| পরিশোধের শর্ত: | T/T |
| যোগানের ক্ষমতা: | 500 sets per month |
| Warranty: | 1 year | Color: | Customized |
|---|---|---|---|
| Type: | Hydraulic piston motor | Package: | Wooden case |
| Material: | Steel | Feature: | Low speed high torque |
| লক্ষণীয় করা: | Drive Wheel Poclain Hydraulic Motor,Steel Poclain Hydraulic Motor,Poclain Hydraulic Piston Motor Replacement |
||

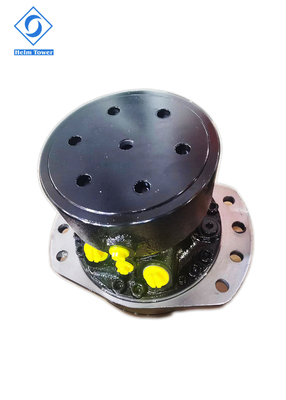

Poclain MS05 MSE05 Hydraulic Motor For Engineering/Farming Machinery
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control
|
Type Displacement |
MS05-8 | MS05-9 | MS05-0 | MS05-1 | MS05-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 376 | 188 | 468 | 234 | 514 | 257 | 560 | 280 | ||
| Max power(kw) | 25 | 17 | 25 | 17 | 25 | 17 | 25 | 17 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
562 | 275 | 699 | 343 | 768 | 376 | 837 | 410 | ||
| Rated torque(N.m) | 1405 | 1749 | 1921 | 2092 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 35 | 35 | ||||||
| Rated speed(r/min) | 90 | 90 | 85 | 80 | ||||||
| Speed range(r/min) | 0-200 | 0-200 | 0-190 | 0-180 | ||||||
HMS05 Applications:
Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine,
Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers,
Mining Machinery: Scraper,Road Header,Heavy Duty Handling Car,Coal Mine Drill
Special Vehicles: Fire Engine
Our company belongs to Wenkui Group Company, which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Poclain MK04,MK18,MK23,MK35,MK47
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO
Workshop View:
Quality Control:
