| উৎপত্তি স্থল: | CHINA |
| পরিচিতিমুলক নাম: | Helm Tower |
| সাক্ষ্যদান: | ISO 9001 |
| মডেল নম্বার: | MS05 MSE05 |
| ন্যূনতম চাহিদার পরিমাণ: | 1 |
|---|---|
| মূল্য: | Negotiable |
| প্যাকেজিং বিবরণ: | Standard Export Wooden Case |
| ডেলিভারি সময়: | 7-15 working days |
| পরিশোধের শর্ত: | L/C, T/T |
| যোগানের ক্ষমতা: | 1000 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed: | 0-200 r/min | Torque: | 1033-3260 N.m |
| Rated pressure: | 25 MPa | Warranty: | 1 year |
| লক্ষণীয় করা: | Low Noise Poclain Drive Motor,MS05 Radial Piston Motor,Hydraulic Motor High Torque Replacement |
||

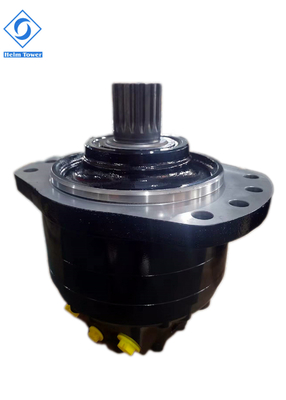

Hydraulic Drive Motor MS05 MSE05 Low Noise High Torque Poclain Replacement
Features:
MS05 Hydraulic Piston Motor
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
MS05 Displacement Diagram
|
Type Displacement |
MS05-8 | MS05-9 | MS05-0 | MS05-1 | MS05-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 376 | 188 | 468 | 234 | 514 | 257 | 560 | 280 | ||
| Max power(kw) | 25 | 17 | 25 | 17 | 25 | 17 | 25 | 17 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
562 | 275 | 699 | 343 | 768 | 376 | 837 | 410 | ||
| Rated torque(N.m) | 1405 | 1749 | 1921 | 2092 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 35 | 35 | ||||||
| Rated speed(r/min) | 90 | 90 | 85 | 80 | ||||||
| Speed range(r/min) | 0-200 | 0-200 | 0-190 | 0-180 | ||||||
Application:
Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.
Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.
Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Special Vehicles: Fire Engine.
MS05 Connection Dimension
Workshop View:
Quality Control:
