| উৎপত্তি স্থল: | China |
| পরিচিতিমুলক নাম: | Helm Tower |
| সাক্ষ্যদান: | ISO 9001 |
| মডেল নম্বার: | MCR10 |
| ন্যূনতম চাহিদার পরিমাণ: | 1 |
|---|---|
| মূল্য: | 200 USD |
| প্যাকেজিং বিবরণ: | Export wooden case |
| ডেলিভারি সময়: | 5 days |
| পরিশোধের শর্ত: | T/T, L/C |
| যোগানের ক্ষমতা: | 500 pcs per month |
| Displacement: | 780 ml/r 1120 ml/r | Brand: | Helm Tower |
|---|---|---|---|
| Inner Diameter: | 194.3 mm | Place of origin: | Zhejiang, China |
| Weight: | 6 KGS | Material: | 42CrMo |
| লক্ষণীয় করা: | Hydraulic Drive Motor Cam Ring,Rexroth MCR10 Cam Ring Stator,Hydraulic Radial Engine Cam Ring |
||

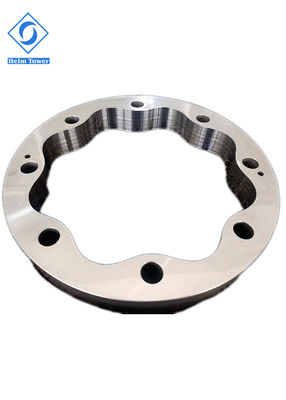

New Cam Ring Replacement Rexroth MCR10 Stator For Hydraulic Drive Motor
Model: MCR10-780
| Displacement | Inner Dia. | Inder Dia. | Outer Dia. | Thickness | Piston | Piston Dia. | Install Holes |
| 780 ml/r | 194.3 mm | 218.5 mm | 264 mm | 32 mm | 10 pcs | 32 mm | 8 pcs |
Model: MCR10-1120
| Displacement | Inner Dia. | Inder Dia. | Outer Dia. | Thickness | Piston | Piston Dia. | Install Holes |
| 1120 ml/r | 194.3 mm | 218.5 mm | 264 mm | 32 mm | 10 pcs | 38.5 mm | 8 pcs |
