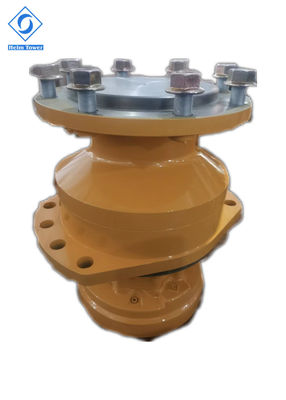

25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery

25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery

  • 25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery
  • 25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery
  • 25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery
  • 25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery
25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery
পণ্যের বিবরণ:
উৎপত্তি স্থল: Ningbo
পরিচিতিমুলক নাম: Helm Tower
সাক্ষ্যদান: ISO 9001
মডেল নম্বার: MS11
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: Negotiation
মূল্য: Negotiable
প্যাকেজিং বিবরণ: Standard Export Wooden Case
ডেলিভারি সময়: 7 working days
পরিশোধের শর্ত: L/C, T/T
যোগানের ক্ষমতা: 1000 units per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Type: piston motor Color: Customized
Speed range: 0-200 r/min Rated Torque: 2903-5005 N.m
Rated pressure: 25 MPa Max. pressure: 31.5 MPa
লক্ষণীয় করা:

25Mpa Pressure Radial Piston Motor

,

MS11 Poclain Hydraulic Piston Pump Motor

,

Construction Machinery Radial Piston Hydraulic Motor

25Mpa Pressure Hydraulic Piston Motor MS11 Poclain Hot Sale For Construction Machinery



Features:



MS11 Hydraulic Piston Motor

1) Radial piston type,low speed,high torque
2) Modular design, High efficiency

3) High pressure and smooth running even at very low speeds.
4) Permissible Radial and Axial load, Motor with multi-disc brake,

5) Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output



Incurve radial piston low speed large toque hydraulic motor
Long service life robust rolling bearing
High power density
Optional mounting position
Adopt Imported Bearing and Oil Seal, etc
Modular design, High efficiency, High pressure tolerance and smooth running even at very low speed
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control

MS11 Displacement Diagram



Type MS11-8 MS11-9 MS11-0 MS11-1 MS11-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
837 418 943 471 1048 524 1147 573 1259 629
Max power(kw) 44 29 44 29 44 29 44 29 44 29

Pressure discrepancy

10MPa Torque (N.m)

1251 613 1409 391 1566 768 1714 840 1882 922
Rated torque(N.m) 3127 3524 3916 4286 4704
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 65 65 65 60 60
Speed range(r/min) 0-160 0-160 0-160 0-150 0-150



Application:


Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor
Farming Machinery: Spray Machine
Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
Marine Machinery: Marine Deck Crane





25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery 025Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery 1





MS11 Connection Diagram

25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery 2



Our Workshop:

25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery 3

25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery 4

Quality Control:

25Mpa Pressure Hydraulic Piston Motor MS11 Poclain For Construction Machinery 5
