| MOQ: | 1 |
| মূল্য: | negotiable |
| standard packaging: | Standard Export Wooden Case |
| Delivery period: | 7 working days |
| payment method: | L/C, T/T |
| Supply Capacity: | 1000 units per month |

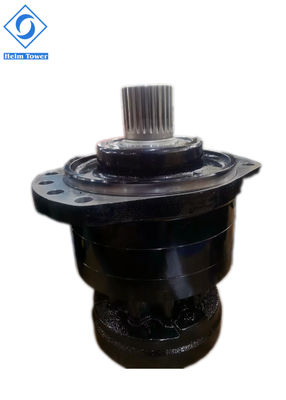

MS Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
| Type | MS18-8 | MS18-9 | MS18-0 | MS18-1 | MS18-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 1395 | 697 | 1571 | 785 | 1747 | 873 | 1911 | 955 | 2099 | 1049 | |
| Max power(kw) | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 |
|
Pressure discrepancy 10MPa Torque (N. m) |
2085 | 1022 | 2348 | 1151 | 2611 | 1279 | 2856 | 1400 | 3137 | 1537 |
| Rated torque(N. m) | 5212 | 5870 | 6528 | 7140 | 7843 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 55 | 55 | 55 | 55 | 50 | |||||
| Speed range(r/min) | 0-150 | 0-150 | 0-150 | 0-135 | 0-125 | |||||
Applications:
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
Our Workshop:
Quality Control:
ভিডিও
ভিডিও
ভিডিও
ভিডিও
|
|
