| উৎপত্তি স্থল: | CHINA |
| পরিচিতিমুলক নাম: | Helm Tower Hydraulic |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | MS02 MSE02 |
| ন্যূনতম চাহিদার পরিমাণ: | 1 |
|---|---|
| প্যাকেজিং বিবরণ: | wooden case |
| ডেলিভারি সময়: | 10days |
| পরিশোধের শর্ত: | L/C |
| যোগানের ক্ষমতা: | 450 sets per month |
| Certificate: | ISO9001:2008 | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Poclain Hydraulic Motors | Color: | Follow customer's requirement |
| Application: | Machinery | Pressure: | High Pressure |
| লক্ষণীয় করা: | Poclain Hydraulic Piston Motor,MS02 Hydraulic Piston Motor,MSE02 Hydraulic Piston Motor |
||

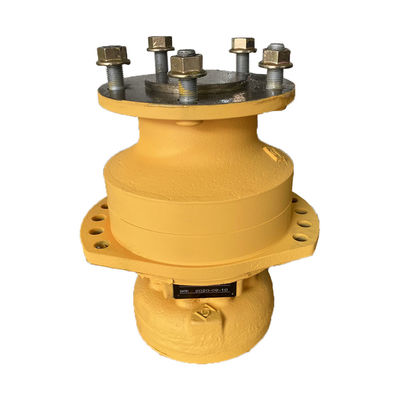

Poclain MS02 MSE02 Hydrauli Piston Motor
Modular design, High efficiency, High pressure and smooth running even at very low speeds,
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control,
Application: As revolution mechanism of hydraulic system, used for forklift, skid steer loader, grab, metallurgy mine equipment, shipping port equipment, hydraulic winch, etc.
|
Type Displacement |
MS02-8 | MS02-9 | MS02-0 | MS02-1 | MS02-2 | |||||
| Full/Semi | Full/Semi | Full/Semi | Full/Semi | Full/Semi | ||||||
| Displacement(ml/r) | 172 | 86 | 213 | 106 | 235 | 118 | 255 | 128 | ||
| Max power(kw) | 16 | 10 | 16 | 10 | 16 | 10 | 16 | 10 | ||
|
Pressure discrepancy 10MPa Torque (N.m) |
273 | 136 | 340 | 170 | 351 | 175 | 405 | 202 | ||
| Rated torque(N.m) | 643 | 796 | 878 | 953 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | ||||||
| Rated speed(r/min) | 140 | 140 | 140 | 120 | ||||||
| Speed range(r/min) | 0-310 | 0-310 | 0-310 |
0-260 |
||||||
Spare parts
HMS MOTOR APPLIATION
Our MS MSE series hydraulic motor are widely applied to agriculture machine, construction machine, coal mine machine, marine equipment, forestry machine etc.
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Minging: mini road header, scraper, heavy duty handling car coal mine drill.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B,
- Carterpillar CS-563 compactor
- John Deere 280 skid steer,
- BOBCAT T190 skid steer and excavators
- VERMEER Horizontal Directional Drill
- SANDVIK Machine
- Gehl 6635 Skid steer
- Greenbeans and pea Harvesting Machine(PMC-979-AT
