| MOQ: | 1 |
| standard packaging: | Wooden case |
| Delivery period: | 25 days |
| payment method: | T/T |
| Supply Capacity: | 50 sets per month |

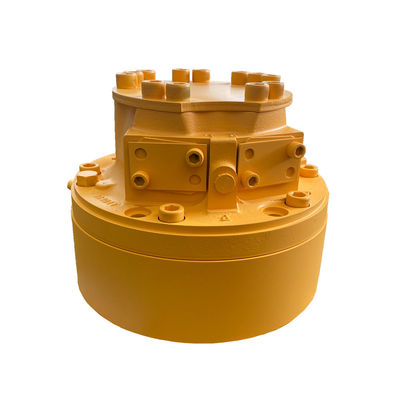

Poclain MS50 Hydrobase Hydraulic Drive Motor
2). Adopt Imported Bearing and Oil Seal, etc.
3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
| Displacement Group | 7 | 8 | 0 | 2 |
| Displacement(ml/r) | 3500 | 4008 | 4997 | 6011 |
| Theoretical torque a 10Mpa(N.m) | 5565 | 6373 | 7945 | 9557 |
| Rated speed(r/min) | 80 | 80 | 63 | 50 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rate torque(N.m) | 11500 | 13150 | 16400 | 19750 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 14150 | 16250 | 20250 | 24350 |
| Speed range(r/min) | 0-148 | 0-138 | 0-111 | 0-92 |
| Max power(kW) | standard displacement is 140kw,variable displacement priority rotation 93kw,no priority is 70kw. | |||
Our MS MSE series hydraulic motor are widely applied to agriculture machine, construction machine, coal mine machine, marine equipment, forestry machine etc.
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Minging: mini road header, scraper, heavy duty handling car coal mine drill.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B,
- Carterpillar CS-563 compactor
- John Deere 280 skid steer,
- BOBCAT T190 skid steer and excavators
- VERMEER Horizontal Directional Drill
- SANDVIK Machine
- Gehl 6635 Skid steer
- Greenbeans and pea Harvesting Machine(PMC-979-AT)
|
|
