| উৎপত্তি স্থল: | China |
| পরিচিতিমুলক নাম: | Helm Tower Hydraulic |
| সাক্ষ্যদান: | ISO9001:2008 |
| মডেল নম্বার: | Poclain MS11 |
| ন্যূনতম চাহিদার পরিমাণ: | 1 |
|---|---|
| প্যাকেজিং বিবরণ: | Wooden case |
| ডেলিভারি সময়: | 15 days |
| পরিশোধের শর্ত: | T/T |
| যোগানের ক্ষমতা: | 50 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Type: | Hydraulic piston motor | Package: | Wooden case |
| Material: | Steel | Feature: | Low speed high torque |
| লক্ষণীয় করা: | radial piston hydraulic motor,axial piston hydraulic motor |
||

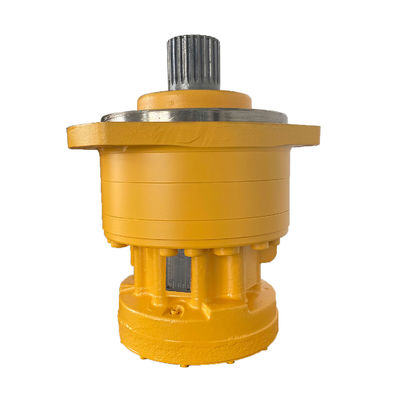

Poclain Hydraulic motors MS11
Radial piston type
1) Adopt Imported Bearing and Oil Seal
2) Modular design, High efficiency, High pressure and smooth running even at very low speeds
3) Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control
4) Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output
| Type | MS11-8 | MS11-9 | MS11-0 | MS11-1 | MS11-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 837 | 418 | 943 | 471 | 1048 | 524 | 1147 | 573 | 1259 | 629 | |
| Max power(kw) | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 |
|
Pressure discrepancy 10MPa Torque (N.m) |
1251 | 613 | 1409 | 391 | 1566 | 768 | 1714 | 840 | 1882 | 922 |
| Rated torque(N.m) | 3127 | 3524 | 3916 | 4286 | 4704 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 65 | 65 | 65 | 60 | 60 | |||||
| Speed range(r/min) | 0-160 | 0-160 | 0-160 | 0-150 | 0-150 |
|||||
Our company belongs to Wenkui Group Company, which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:
Japanese IHI vane motor with three series of HVK,HVN,HVL total 10 size which can used in ship crane and port crane.
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO,
Danfoss Orbit Motor: OMP,OMR,OMS,OMT,OMV,OMM,
Vickers: PVB,PVQ,PVH,V,Cartridge kits,
Komatsu pumps:705,704series
Daikin pump:V8,V15,V38 etc.
Hydraulic radial piston pump: YCY/MCY/SCY/PCY series ,RK series
Hydraulic Winch, Rexroth GFT,GFB Series Gearbox..
