Hydraulic Piston Motor Rexroth MCR03 Final Drive Motor For Carterpillar Skid Steer Loader

MOQ:	1
standard packaging:	wooden case
Delivery period:	10days
payment method:	L/C
Supply Capacity:	450 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

পরিচিতিমুলক নাম

Helm Tower Hydraulic

সাক্ষ্যদান

ISO9001

Model Number

MCR05

Warranty:

1 year

Color:

Follow customer's requirement

Application:

Machinery

Pressure:

High Pressure

Delivery time:

5-7 days

Package:

Wooden case

বিশেষভাবে তুলে ধরা:

radial piston hydraulic motor

axial piston hydraulic motor

Product Description

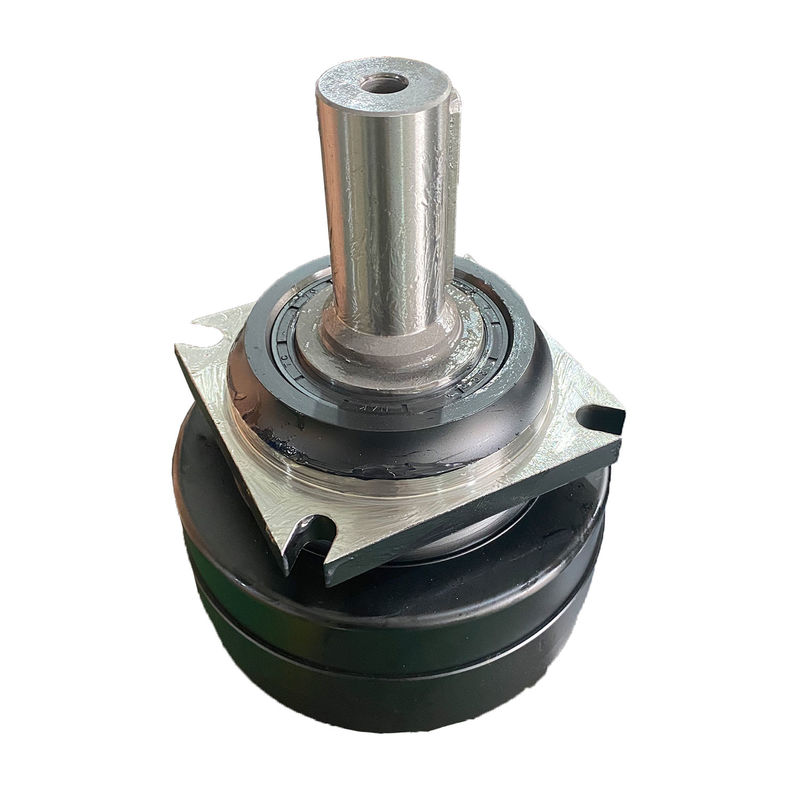

Hydraulic Piston Motor Rexroth MCR03 Final Drive Motor For Carterpillar Skid Steer Loader

Rexroth MCR03/MCRE03 Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.

Code	MCR03
Displacement Group	7	0	1	2
Displacement(ml/r)	160	225	255	280
Theoretical torque at 10 MPa(N.m)	254	357	405	445
Rated speed(r/min)	250	160	160	125
Rated pressure(Mpa)	25	25	25	25
Rated torque(N.m)	530	740	830	920
Max pressure(Mpa)	31.5	31.5	31.5	31.5
Max torque(N.m)	650	910	1030	1130
Speed range(r/min)	0-670	0-475	0-420	0-385
Max power(kW)	18

Code	MCRE03
0Displacement Group	0	1	2
Displacement(ml/r)	325	365	400
Theoretical torque at 10MPa(N.m)	516	580	636
Rated speed(r/min)	160	125	125
Rated pressure(Mpa)	25	25	25
Rated torque(N.m)	1060	1200	1310
Max pressure(Mpa)	31.5	31.5	31.5
Max torque(N.m)	1310	1470	1620
Speed range(r/min)	0-330	0-295	0-270
Max power(kW)	22

Hydraulic Piston Motor Rexroth MCR03 Final Drive Motor For Carterpillar Skid Steer Loader 0
