| উৎপত্তি স্থল: | CHINA |
| পরিচিতিমুলক নাম: | Helm Tower Hydraulic |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | MCR05 |
| ন্যূনতম চাহিদার পরিমাণ: | 1 |
|---|---|
| প্যাকেজিং বিবরণ: | wooden case |
| ডেলিভারি সময়: | 10days |
| পরিশোধের শর্ত: | L/C |
| যোগানের ক্ষমতা: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Machinery | Pressure: | High Pressure |
| Delivery time: | 5-7 days | Package: | Wooden case |
| লক্ষণীয় করা: | radial piston hydraulic motor,axial piston hydraulic motor |
||

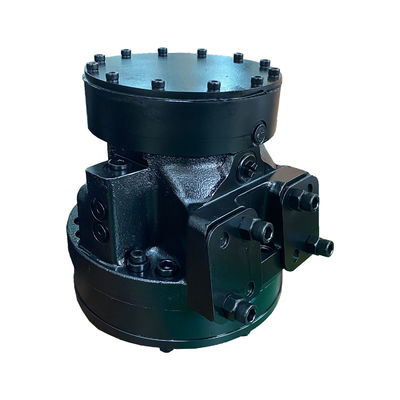

Rexroth MCR5 hydraulic motor Bobcat S300 Final Drive Motor for skid steer loader
Product Features:
BOBCAT S300 Final Drive Motor
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
Designed in control modules, combine freely
High efficiency, High pressure, low speed motors
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
