| MOQ: | Negotiation |
| মূল্য: | negotiable |
| standard packaging: | Wooden Case |
| Delivery period: | 3 days |
| payment method: | L/C, T/T, Western Union |
| Supply Capacity: | 5000 pieces per month |

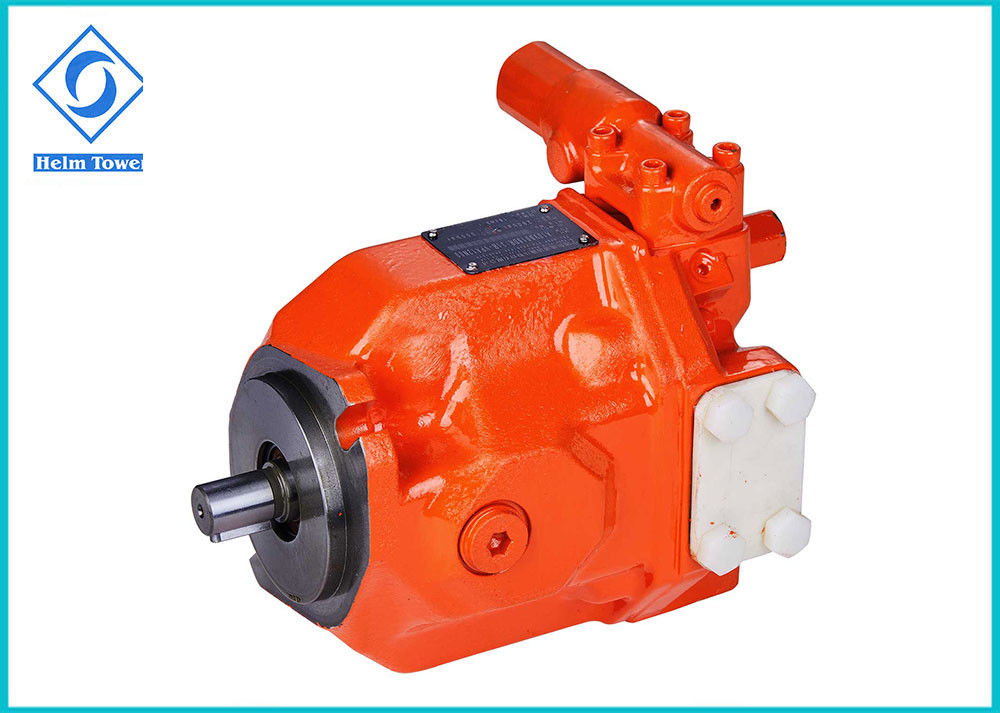

Rexroth A10V uchida A10V18 Variable displacement Hydraulic Piston Pump
Axial piston pumps model A10V are swash plate design variable displacement pumps.
This piston pump smoothly and continuously varies its displacement,by altering the angle of its swash plate. As your system operates, valves monitor the loads on the actuators and control the swash plate accordingly.
| Model | A10VSO71DR/31R-PPA12N00 |
| Specification | 10,18,28,45,71,100,140 |
| Control | DR,DFR,DRG,DFLR,FE,FED,DFE1,ED71,ED72 |
| application | Oil |
| Displacement | 5,10,12,23,28,55 |
| Nominal pressure | 280 bar |
| Maximum pressure | 350 bar |
Specification data:
| Type | A10VSO16 | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 | A10VSO140 | |||
| Sizes | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 27.7 | 39 | 55 | 73 | 93 | 118 |
| Max. power | in 1500 r/min | 12.6 | 12.6 | 20 | 32 | 50 | 70 | 98 | ||
| (¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Max. torque | ||||||||||
| Weight | m | Kg | 12 | 12 | 15 | 21 | 33 | 45 | 60 | |
FAQ:
A: Manufacturer
Q: Your payment?
A: 100% TT in advance
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: Warranty time?
A: 1 year
If you have another question, pls feel free to contact us as below:
