| উৎপত্তি স্থল: | Ningbo |
| পরিচিতিমুলক নাম: | Helm Tower |
| সাক্ষ্যদান: | ISO 9001 |
| মডেল নম্বার: | MS18/MSE18 |
| ন্যূনতম চাহিদার পরিমাণ: | Negotiation |
|---|---|
| মূল্য: | Negotiable |
| প্যাকেজিং বিবরণ: | Standard Export Wooden Case |
| ডেলিভারি সময়: | 7-15 working days |
| পরিশোধের শর্ত: | L/C, T/T |
| যোগানের ক্ষমতা: | 1000 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed range: | 0-90 r/min | Torque range: | 7650-9200 N. m |
| Rated pressure: | 25MPa | Max pressure: | 40MPa |
| Material: | steel | ||
| লক্ষণীয় করা: | radial piston hydraulic motor,axial piston hydraulic motor |
||

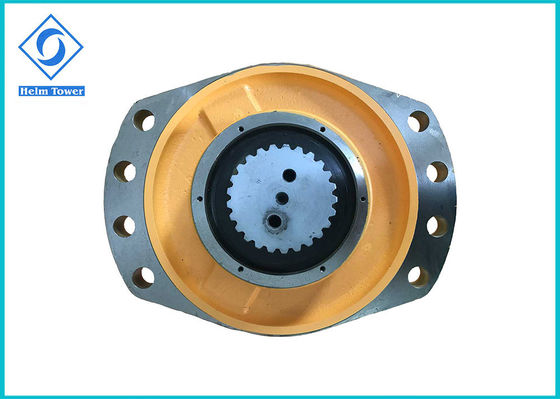

Poclian MS18 Hydraulic Motor for Drilling Rig BOMAG Road Roller BW213-D3
Features:
1)MS18 Hydraulic Piston Motor:;
2)ow speed Large torque Hydraulic motor,;
3)Radial piston type,Adopt Imported Bearing and Oil Seal,Modular design, High efficiency,
4)High pressure and smooth running even at very low speeds
5)Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.
Displacement Diagram:
| Type | MS18-8 | MS18-9 | MS18-0 | MS18-1 | MS18-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 1395 | 697 | 1571 | 785 | 1747 | 873 | 1911 | 955 | 2099 | 1049 | |
| Max power(kw) | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 | 62 | 42 |
|
Pressure discrepancy 10MPa Torque (N. m) |
2085 | 1022 | 2348 | 1151 | 2611 | 1279 | 2856 | 1400 | 3137 | 1537 |
| Rated torque(N. m) | 5212 | 5870 | 6528 | 7140 | 7843 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 55 | 55 | 55 | 55 | 50 | |||||
| Speed range(r/min) | 0-150 | 0-150 | 0-150 | 0-135 | 0-125 | |||||
Applications:
Consturction Machinery: Backhoe Loader, Explosion - Proof Fprklift, Forklift
Mining Machinery: Mini Road Header, Heavy Duty Handing Car, Coal Mine Drill
Marine Machinery: Wildlass, Crane
MS18 Connection Dimension
High precision testing facilities and experienced inspectors.
Our Office:
FAQ:
Q:Are you trading company or manufacturer?
A: A manufacturer with 15 years experience in producing motors.
Q:Which payment terms do you accept?
A:T/T L/C.
Q:What's the warranty of your products?
A:One year from the delivery date.
Q:Can we buy 1 piece for quality testing?
A:Yes, no problem.
