| উৎপত্তি স্থল: | China |
| পরিচিতিমুলক নাম: | Helm Tower |
| সাক্ষ্যদান: | ISO9001:2008 |
| মডেল নম্বার: | MCR10/ MCRE10 |
| ন্যূনতম চাহিদার পরিমাণ: | Negotiation |
|---|---|
| মূল্য: | Negotiable |
| প্যাকেজিং বিবরণ: | wooden or carton case |
| ডেলিভারি সময়: | 1-7 days |
| পরিশোধের শর্ত: | L/C, T/T,Credit Card |
| যোগানের ক্ষমতা: | 500 pcs/ month |
| Material: | Cast Iron | Size: | 100% same as Poclain originals' |
|---|---|---|---|
| Performance: | replace Poclain originals' very well | Hardness: | 60-62HRC |
| Tolerance: | high accuracy | Using life: | long |
| লক্ষণীয় করা: | hydraulic motor repair parts,hydraulic pump motor parts,poclain hydraulic motor parts |
||
Rexroth MCR10 Hydraulic Piston Motor Spare Parts Cam Ring / Rotor / Plunger Piston
Features:
Poclain Series MCR10 MCRE10 hydraulic spare parts.
include the drive shaft front cover, stator, rotor , roller etc.
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.

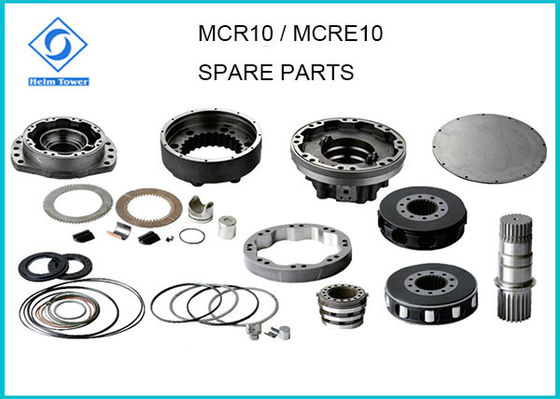

MCR10 / MCRE10 series parts list
| DESCRIPTION | QTYS | DESCRIPTION | QTYS |
| drive shaft | 1 | rear cover | 1 |
| front cover | 1 | dynamic friction | 14 |
| stator | 1 | static friction | 15 |
| rotor | 1 | checking cylinder | 1 |
| plunger piston | 10 | break plunger | 1 |
| roller | 10 | cover plate | 1 |
| distributor | 1 | brake shaft | 1 |
