| MOQ: | 1 PCS |
| মূল্য: | negotiable |
| standard packaging: | Export plywood case |
| Delivery period: | 5-8 working days |
| payment method: | T/T, L/C |
| Supply Capacity: | 2000pcs per month |

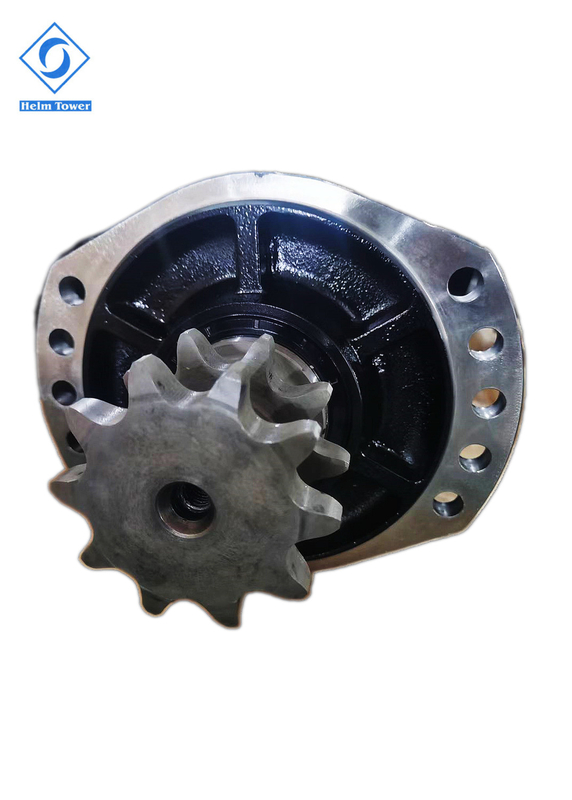

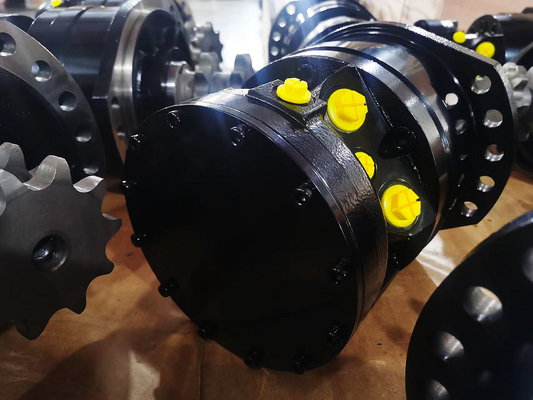

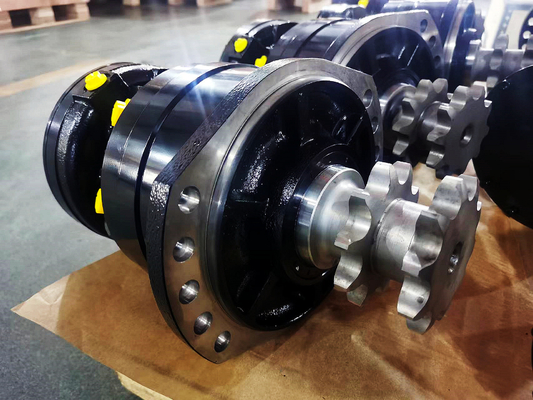

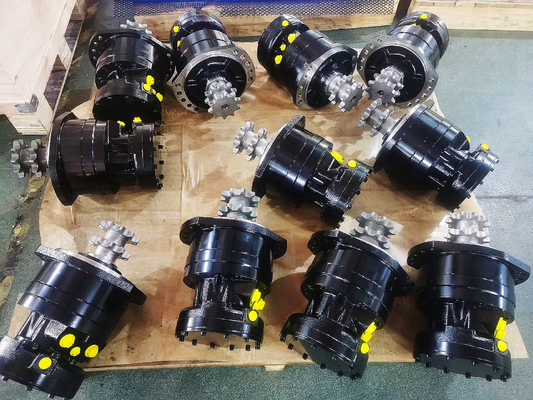

High Torque Low Speed MCR03 MCRE03 Hydraulic Motor with low noise
| Code | MCR03 | |||
| Displacement Group | 7 | 0 | 1 | 2 |
| Displacement(ml/r) | 160 | 225 | 255 | 280 |
| Theoretical torque at 10 MPa(N.m) | 254 | 357 | 405 | 445 |
| Rated speed(r/min) | 250 | 160 | 160 | 125 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 530 | 740 | 830 | 920 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 650 | 910 | 1030 | 1130 |
| Speed range(r/min) | 0-670 | 0-475 | 0-420 | 0-385 |
| Max power(kW) | 18 | |||
| Code | MCRE03 | ||
| 0Displacement Group | 0 | 1 | 2 |
| Displacement(ml/r) | 325 | 365 | 400 |
| Theoretical torque at 10MPa(N.m) | 516 | 580 | 636 |
| Rated speed(r/min) | 160 | 125 | 125 |
| Rated pressure(Mpa) | 25 | 25 | 25 |
| Rated torque(N.m) | 1060 | 1200 | 1310 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 1310 | 1470 | 1620 |
| Speed range(r/min) | 0-330 | 0-295 | 0-270 |
| Max power(kW) | 22 | ||
