| MOQ: | Negotiation |
| মূল্য: | negotiable |
| standard packaging: | Export plywood case |
| Delivery period: | 5-8 working days |
| payment method: | T/T, L/C |
| Supply Capacity: | 200pcs per month |

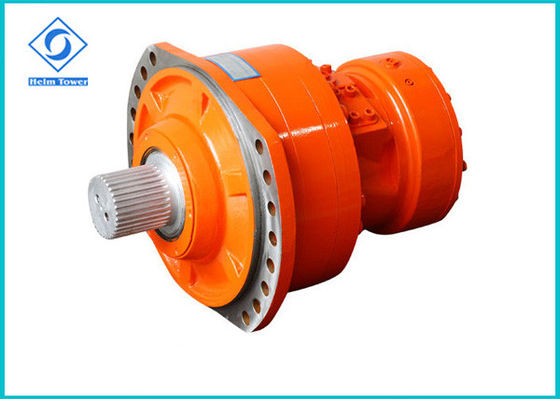

Anti - Rust Radial Piston Hydraulic Motor , Solid Hydraulic Wheel Drive Motor
Features:
This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
MS25 series Displacement Diagram:
| Code |
MS25
|
|||
| Displacement Group |
8
|
0
|
1
|
2
|
| Displacement(ml/r) |
2004
|
2498
|
2752
|
3006
|
| Theoretical torque at 10 MPa(N.m) |
3186
|
3972
|
4376
|
4780
|
| Rated speed(r/min) |
100
|
80
|
63
|
63
|
| Rated pressure(Mpa) |
25
|
25
|
25
|
25
|
| Rated torque(N.m) |
6550
|
8200
|
9000
|
9850
|
| Max pressure(Mpa) |
31.5
|
31.5
|
31.5
|
31.5
|
| Max torque(N.m) |
8100
|
10100
|
11150
|
12150
|
| Speed range(r/min) |
0-145
|
0-137
|
0-125
|
0-115
|
| Max power(kW) |
90
|
|||
MS25 Applications:
Engineering Machinery: horizontal directional drill (HDD),jumbolter,10T road roller(MK series ),Cement Concrete Mixing Machine,forging manipulators.
Marine Machinery: windlass,crane.
Mining Machinery: road header,heavy duty handling car,coal mine drill.
High precision testing facilities and experienced inspectors.
|
|
