| MOQ: | Negotiation |
| মূল্য: | negotiable |
| standard packaging: | Standard Export Wooden Case |
| Delivery period: | 7-15 working days |
| payment method: | L/C, T/T |
| Supply Capacity: | 1000 units per month |

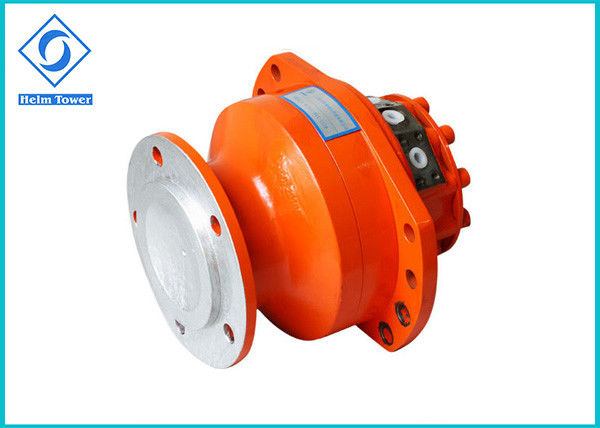

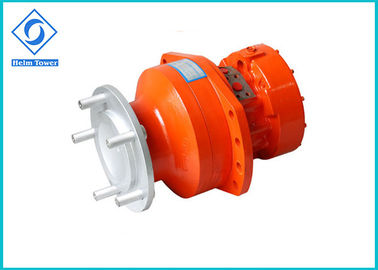

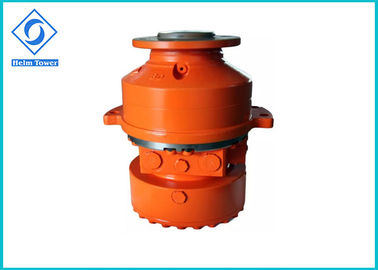

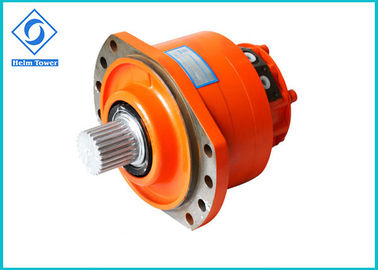

Poclain MSE11 Hydraulic Drive Motor High Pressure And Smooth Running
Features:
MS11 Hydraulic Piston Motor
1) Radial piston type,low speed,high torque
2) Modular design, High efficiency
3) High pressure and smooth running even at very low speeds.
4) Permissible Radial and Axial load, Motor with multi-disc brake,
5) Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output
MS11 Displacement Diagram
| Type | MS11-8 | MS11-9 | MS11-0 | MS11-1 | MS11-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 837 | 418 | 943 | 471 | 1048 | 524 | 1147 | 573 | 1259 | 629 | |
| Max power(kw) | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 | 44 | 29 |
|
Pressure discrepancy 10MPa Torque (N.m) |
1251 | 613 | 1409 | 391 | 1566 | 768 | 1714 | 840 | 1882 | 922 |
| Rated torque(N.m) | 3127 | 3524 | 3916 | 4286 | 4704 | |||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | |||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | 35 | |||||
| Rated speed(r/min) | 65 | 65 | 65 | 60 | 60 | |||||
| Speed range(r/min) | 0-160 | 0-160 | 0-160 | 0-150 | 0-150 | |||||
Applications:
Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.
Minging: mini road header, scraper, heavy duty handling car coal mine drill.
Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,
Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,
Industry: process, paper, foundry, food.
Marines: fishing, harbor,
Transportation: material, heavy duty, on-highway.
MS11 Connection Diagram
High precision testing facilities and experienced inspectors.
|
|
