| উৎপত্তি স্থল: | Ningbo |
| পরিচিতিমুলক নাম: | Helm Tower |
| সাক্ষ্যদান: | ISO 9001 |
| মডেল নম্বার: | MS50 |
| ন্যূনতম চাহিদার পরিমাণ: | Negotiation |
|---|---|
| মূল্য: | Negotiable |
| প্যাকেজিং বিবরণ: | Standard Export Wooden Case |
| ডেলিভারি সময়: | 7-15 working days |
| পরিশোধের শর্ত: | L/C, T/T |
| যোগানের ক্ষমতা: | 1000 units per month |
| Type: | piston motor | Color: | customized |
|---|---|---|---|
| Speed range: | 0-100 r/min | Torque range: | 13077-22463 N. m |
| Rated pressure: | 25MPa | Max pressure: | 40MPa |
| লক্ষণীয় করা: | hydraulic wheel drive motor,hydraulic track drive motor |
||

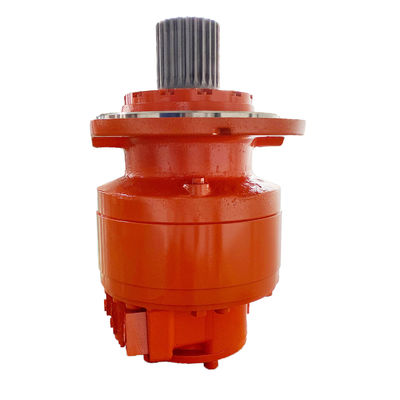

Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly
Over the years, motors from the MS range have become an unrivaled benchmark on the hydraulic motor market thanks to their ability to meet our customers' requirements perfectly in terms of performance and reliability.
The millions that have been sold help to meet the needs of machine manufacturers and end users every day.
The MS range proves how modular it is by adapting to your machines as much as possible. It equips both mobile and industrial applications equally well.
Features :
MS25 Displacement Diagram
| Type | MS50-8 | MS50-9 | MS50-0 | MS50-1 | MS50-2 | |||||
| Displacement(ml/r) | Full | Semi | Full | Semi | Full | Semi | Full | Semi | Full | Semi |
| 3500 | 1750 | 4008 | 2004 | 4996 | 1747 | 6012 | 3006 | |||
| Max power(kw) | 123 | 82 | 123 | 82 | 123 | 65 | 123 | 82 | ||
| Pressure discrepancy 10MPa Torque (N. m) |
5231 | 2562 | 5990 | 2935 | 7467 | 2558 | 8985 | 4402 | ||
| Rated torque(N. m) | 13077 | 14975 | 18667 | 22463 | ||||||
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | ||||||
| Max pressure(MPa) | 40 | 40 | 40 | 35 | ||||||
| Rated speed(r/min) | 40 | 40 | 40 | 35 | ||||||
| Speed range(r/min) | 0-100 | 0-100 | 0-100 | 0-90 |
||||||
Applications:
Construction Machinery: Road Roller, Forging Manipulators, Bucket Wheel Machine.
Marine Machinery: Marine Deck Crane, Gantry Crane Equipment.
Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill.
MS35 Connection Dimension
High precision testing facilities and experienced inspectors.
