| MOQ: | Negotiation |
| মূল্য: | negotiable |
| standard packaging: | Standard Export Wooden Case |
| Delivery period: | 7-15 working days |
| payment method: | L/C, T/T |
| Supply Capacity: | 300 units per month |

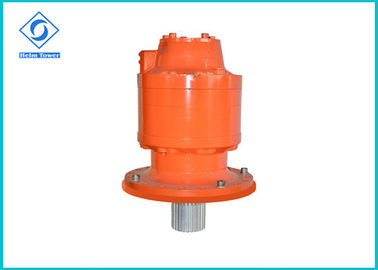

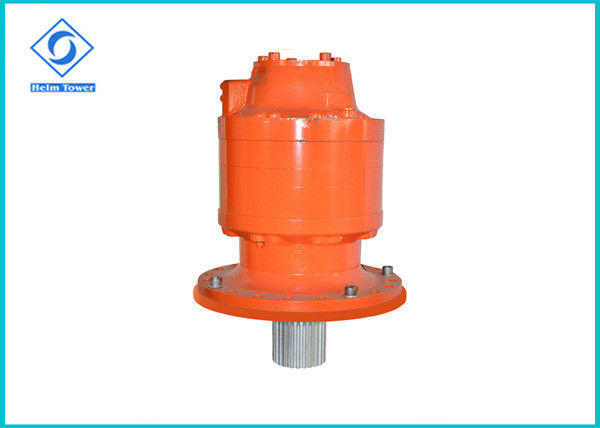

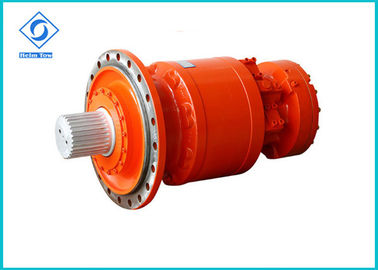

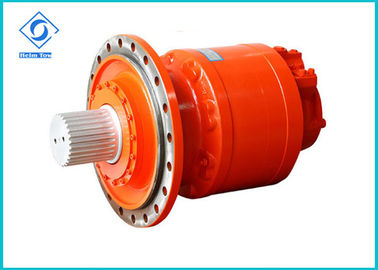

Customized Color Poclain Hydraulic Motor 0-50 R/Min 32850-49300 N. M Torque
Features:
HMS125 series Hydraulic Motor
1.radial piston design.
2.higher output torques,lower output speed,smoother output speed at low speeds.
3.optimized and modular design capable of delivering high performance.
4.highly efficient at any speed or operating pressure.
5.withstand the most extreme operating conditions and require very little maintenance.
**IMPORTANT INFORMATION**
As with any hydraulic system, proper flushing of the system is crucial to the system performing at its maximum efficiency. Before installation, make sure all lines, filters, and reservoirs are flushed, cleaned and properly inspected or replaced before installing knew hydraulic pump, motor or transmission.
Displacement diagram:
| Displacement Group | 8 | 0 | 2 |
| Displacement(ml/r) | 10000 | 12500 | 15000 |
| Theoretical torque a 10Mpa(N.m) | 15900 | 19875 | 23850 |
| Rated speed(r/min) | 50 | 40 | 30 |
| Rated pressure(Mpa) | 25 | 25 | 25 |
| Rate torque(N.m) | 32850 | 41100 | 49300 |
| Max pressure(Mpa) | 31.5 | 31.5 | 31.5 |
| Max torque(N.m) | 40500 | 50650 | 60800 |
| Speed range(r/min) | 0-50 | 0-40 | 0-30 |
| Max power(kW) | standard displacement is 240kw,variable displacement priority rotation 160kw | ||
Applications:
Construction Machinery
Shield Machine, Road header,Bucket Wheel Machine,Oil Drilling Equipment
Mining Machinery
Heavy duty handling car,coal mine drill
High precision testing facilities and experienced inspectors.
|
|
