| Place of Origin: | CHINA |
| পরিচিতিমুলক নাম: | Helm Tower Hydraulic |
| সাক্ষ্যদান: | ISO9001 |
| Model Number: | MCR10 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 10days |
| Payment Terms: | L/C |
| Supply Ability: | 450 sets per month |
| Warranty: | 1 year | Color: | Follow customer's requirement |
|---|---|---|---|
| Application: | Machinery | Pressure: | High Pressure |
| Delivery time: | 5-7 days | Package: | Wooden case |
| বিশেষভাবে তুলে ধরা: | radial piston hydraulic motor,axial piston hydraulic motor,Final Drive Hydraulic Piston Motor |
||

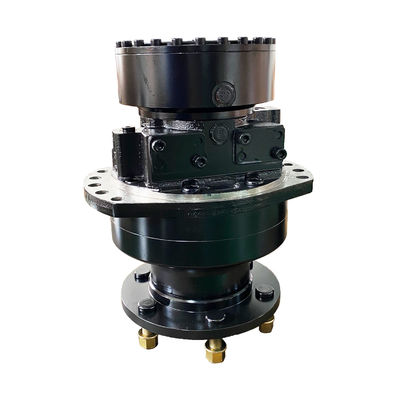

Radial Piston Type Hydraulic Piston Motor Hydraulic Wheel Motor High Pressure For BOBCAT T300
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Rexroth same series motor perfect replacement,
Designed in control modules,combine freely,
High efficiency,High pressure, low noise,
Radial piston,Low speed,High torque.
| Code | HMCR10 | HMCRE10 | ||||
| Displacement Group | 0 | 1 | 2 | 0 | 1 | 2 |
| Displacement(ml/r) | 780 | 860 | 940 | 1120 | 1250 | 1340 |
| Theoretical torque at 10Mpa(N.m) | 1240 | 1367 | 1494 | 1780 | 1987 | 2130 |
| Rated speed(r/min) | 125 | 100 | 100 | 100 | 80 | 80 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.M) | 2560 | 2820 | 3090 | 3680 | 4110 | 4400 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N.m) | 3160 | 3480 | 3810 | 4540 | 5060 | 5430 |
| Speed range(r/min) | 0-215 | 0-195 | 0-180 | 0-150 | 0-135 | 0-125 |
| Max.power(kW) | 44 | 44 | 44 | 50 | 50 |
50 |
