পণ্যের বিবরণ:
প্রদান:
|
| সাক্ষ্যদান: | ISO9001 | Package: | Wooden Case |
|---|---|---|---|
| Warranty: | 1 Year | Product name: | Hydraulic vane pump |
| Power: | Hydraulic | Speed: | High Speed |
| Usage: | Construction Machinery | Color: | According to customer demand |
| লক্ষণীয় করা: | variable vane hydraulic pump,variable displacement vane pump |
||

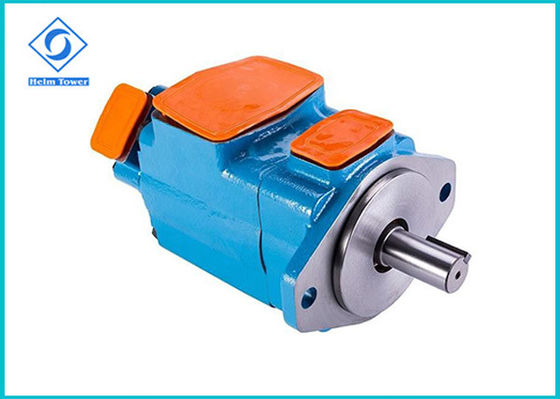

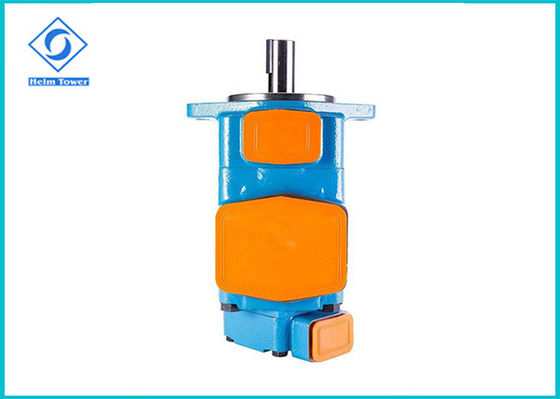

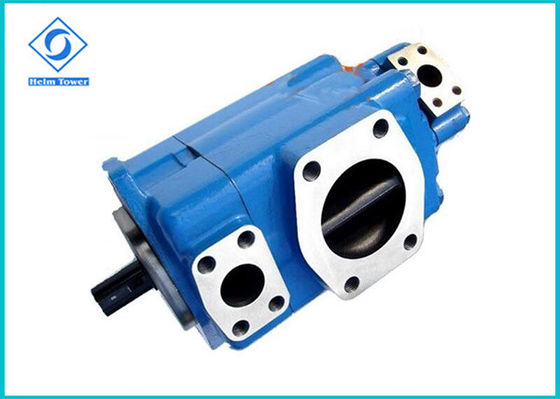

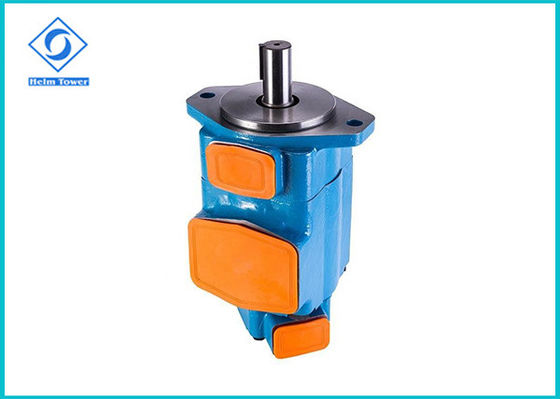

Vickers QP Series Vane Type Hydraulic Pump Double Pump Various Displacements Available
| Series |
Flow code (USgpm) |
Geometric displacement ml/r |
Max.operating pressure Mpa |
Max.speed r/min |
Min. Speed r/min |
| 20V | 2 | 7(0.43) | 21 | 2700 | 600 |
| 3 | 10(0.61) | ||||
| 4 | 13(0.79) | ||||
| 5 | 16.5(1.01) | ||||
| 6 | 19(1.16) | ||||
| 7 | 22(1.40) | ||||
| 8 | 27(1.67) | ||||
| 9 | 30(1.85) | ||||
| 10 | 31.5(1.92) | ||||
| 11 | 35(2.14) | ||||
| 12 | 40(2.44) | 16 | |||
| 14 | 45(2.78) | 14 | |||
| 25V | 10 | 32(1.95) | 21 | 2700 | 600 |
| 12 | 38(2.32) | ||||
| 14 | 43.5(2.65) | ||||
| 15 | 47(2.89) | 2500 | |||
| 17 | 54(3.30) | ||||
| 19 | 60(3.66) | ||||
| 21 | 67(4.13) | ||||
| 25 | 79.2(4.83) | ||||
| 35V | 21 | 67(4.13) | 21 | 2500 | 600 |
| 25 | 81(4.94) | ||||
| 30 | 95(5.80) | ||||
| 32 | 101(6.16) | ||||
| 35 | 109(6.65) | 2400 | |||
| 38 | 119(7.26) | ||||
| 45 | 143(8.72) | 14 |
Appliation:
Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.
ব্যক্তি যোগাযোগ: Mr. Helm Tower
টেল: 13567431300
ফ্যাক্স: 86-574-86369630
